Overview
When installing a Zappi charger, several requirements must be considered, including the height of the Electric Vehicle (EV) socket outlet.
Although Amendment 1 of the 18th Edition has removed specific installation height requirements for EV socket outlets, BS 7671:2018+A1:2020 continues to reference the BS 8300 series.
According to these standards, the EV socket outlet should be installed at a height between 0.75 and 1.2 metres from the Finished Floor Level (FFL). Additionally, the top of any associated displays should be positioned between 1.2 and 1.4 metres from the FFL.

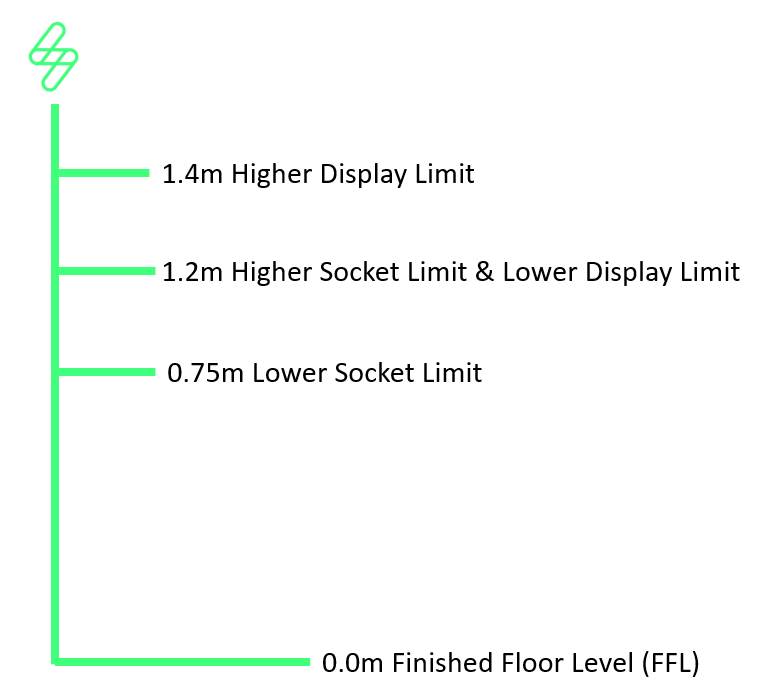

Visually Displayed*
*NOT TO SCALE
