This article provides step-by-step instructions for resetting your hub and pairing devices with ease. Whether you're experiencing technical difficulties or simply need to reconfigure your setup, these concise and clear guidelines will help you navigate the process smoothly.
From factory resetting the hub to setting the master device and initiating pairing mode, each step is outlined in detail to ensure a seamless experience. Additionally, we've included visual aids to assist you further in understanding the process. Follow along to troubleshoot and optimize your device connectivity effortlessly.
Hub Reset Instructions
1. Turn off the hub’s power.

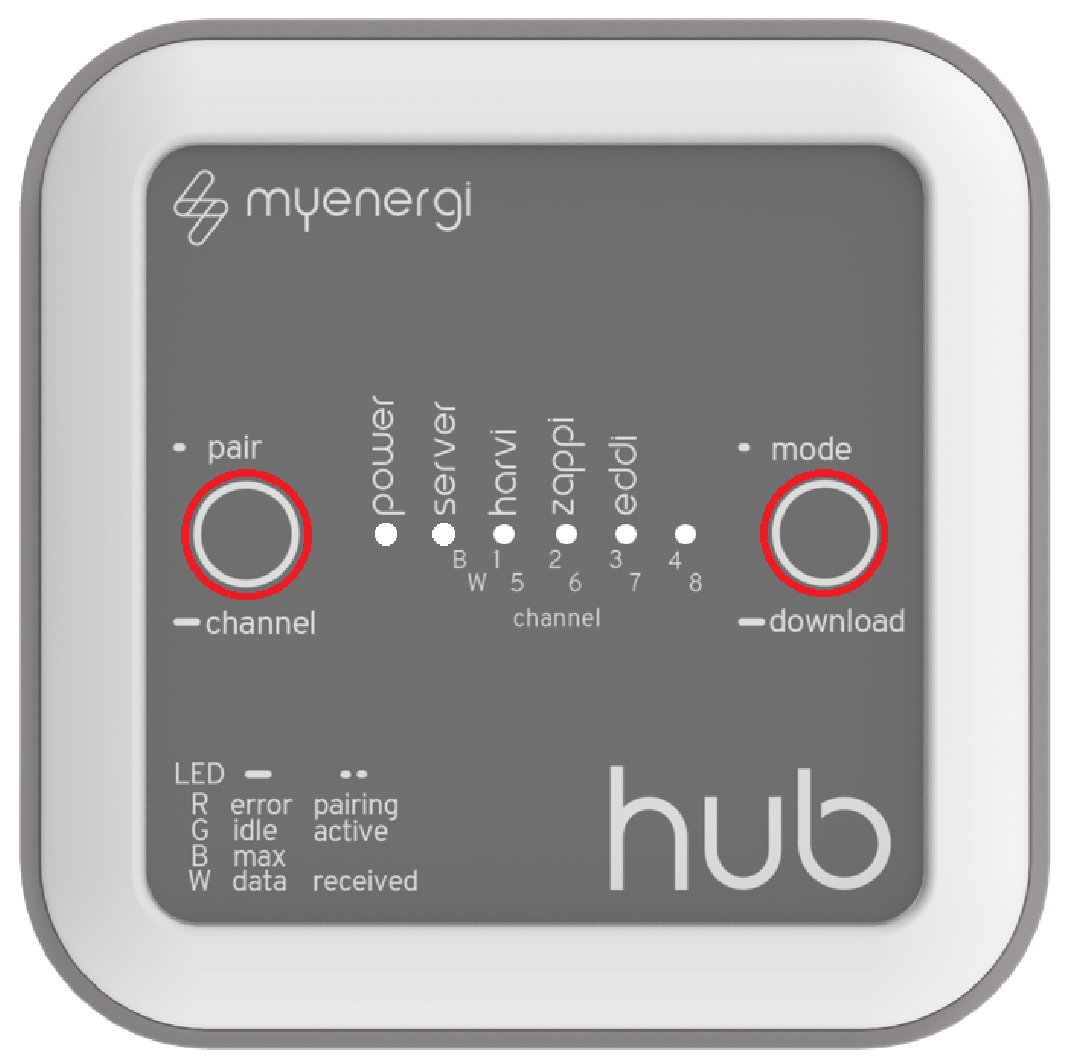

2. Press and hold both buttons on the hub.
3. While holding both buttons, restore power to the hub.

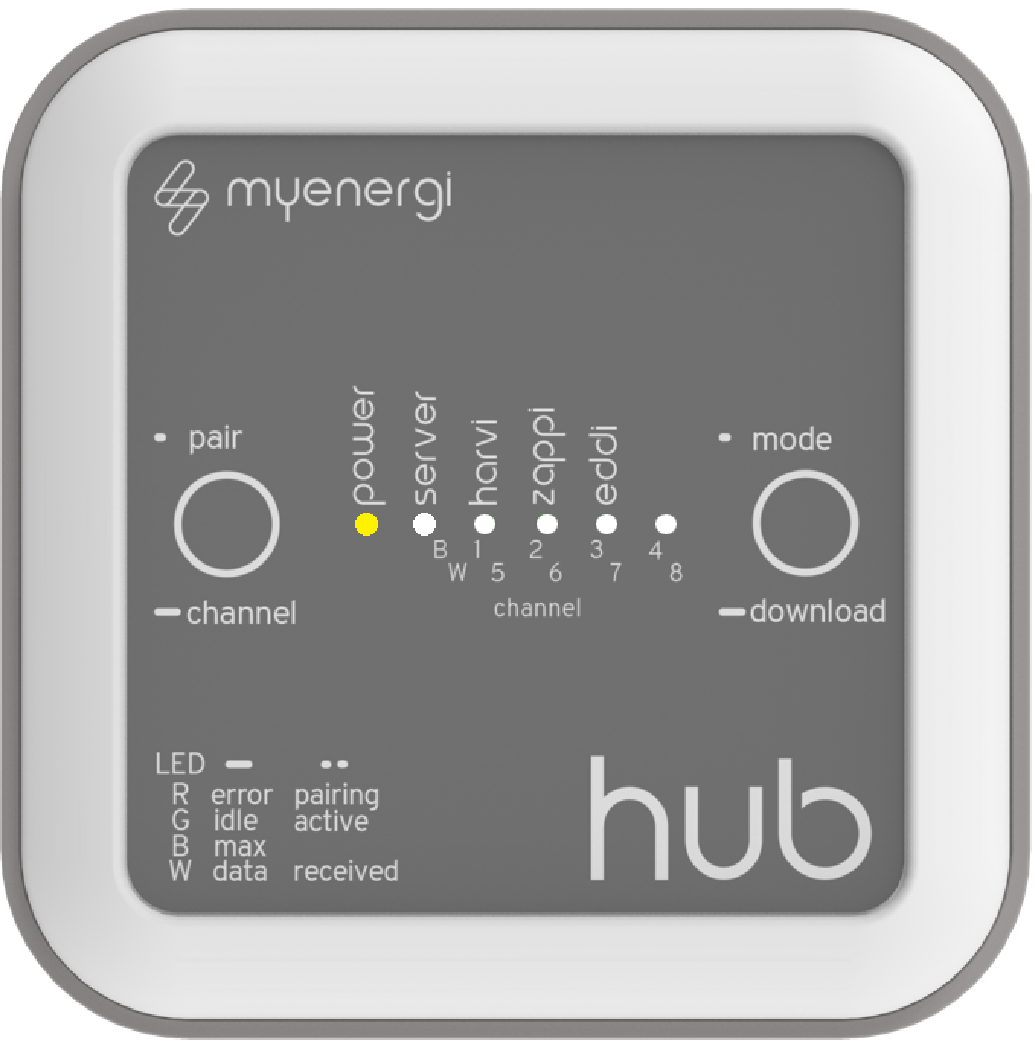

4. Wait for the power light to turn yellow.
5. Release both buttons.

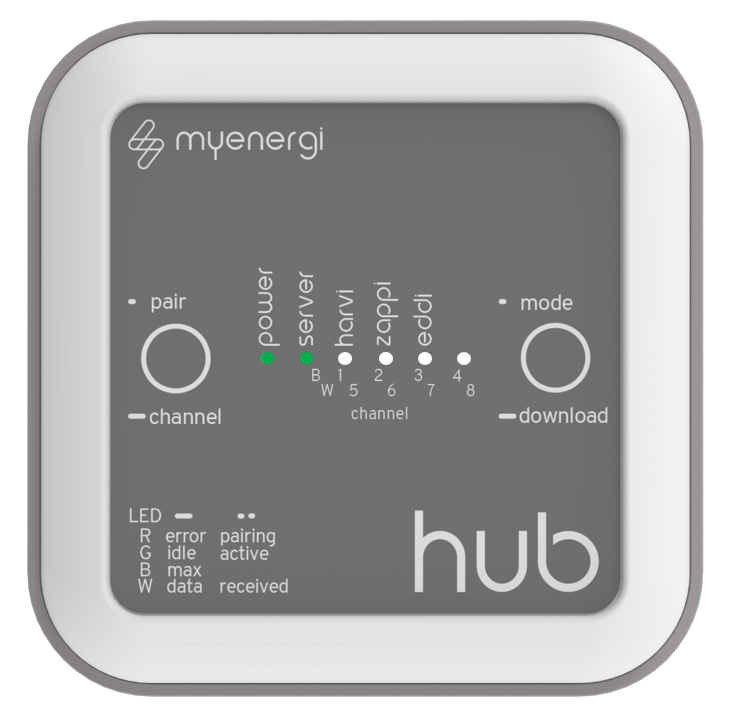

6. Confirm that only the power and server lights are illuminated.
Pairing Instructions
After resetting the hub, proceed to configure the master device and initiate pairing:
-
Remove the hub from the master device (zappi or eddi):
- Navigate to Menu - Other/Device Settings - Installer Settings - 0 0 0 0 - Linked Devices - Devices - Hub - Remove Device.
-
Verify that the master device is on Channel 1:
- Go to Menu - Other/Device Settings - Installer Settings- 0 0 0 0 - Linked Devices - Channel.
-
Activate pairing mode on the hub:
- Briefly press the pair button (left button).
- Ensure the Power LED flashes red, the Ch 1 / Harvi LED is blue, and all other LEDs remain off.
-
Pair the master device (zappi or eddi) with the hub:
- Verify that the device is set to “Master” under Menu: Other/Device Settings - Installer Settings - 0 0 0 0 - Linked Devices - Set Master.
- Confirm a tick appears beside “Set Master” in the Linked Device menu.
- Enter Pairing Mode on the device. Go to Linked Devices - Pairing Mode.
- When the hub appears, press “+” to initiate pairing. Once pairing completes, the hub will reappear in the list, confirming successful pairing.
