In this article:
Overview
The following wiring diagram shows a suggested application and are examples only; there are many more possibilities.
Please take a look at the Safety section within the installation manual and read all the installation sections before attempting to install the eddi.
A good level of electrical competence and a reasonable understanding of domestic plumbing systems is assumed for studying this application example.
Wiring Diagram
| Key for Wiring Diagram | |
| 1 - eddi device | 2 - Mains supply (230V AC from B16 circuit breaker or 13A fused spur) |
| 3 - Hot Water cylinder | 4 - Heating element 1 (max. 3.7kW) |
| 5 - Isolator (20A double pole) | 6 - Heating element 2 (max. 3.7kW) |
Functional Description
Electric-only households tend to have a hot water cylinder with two immersion heaters, this is perfect for eddi as it can support heating two heaters sequentially.
Heater 1 (the top immersion heater) (4) is heated with surplus power until the water at the top of the cylinder is hot and the thermostat opens, then eddi will immediately switch over to Heater 2 (6); heating the bottom of the cylinder. This makes the most of surplus energy as sometimes there will not be enough to heat the whole volume of the cylinder; it's best to heat a smaller proportion (i.e. the top) first so there is some usable hot water, rather than a larger volume of warm water.
During heating of the lower priority heater (Heater 2), eddi will switch back to the higher priority heater (Heater 1) every 15 mins to check if it can store any more heat. When the water is fully heated, any surplus power will be exported, eddi will switch back to the priority heater and check the lower priority heater every 15 minutes.
The heating priority can be changed in the Main Menu (Priority).

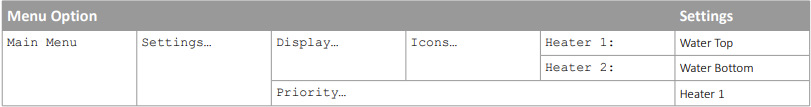

Settings Required
