Overview
The following wiring diagram shows a suggested application and are examples only; there are many more possibilities.
Please take a look at the Safety section within the installation manual and read all the installation sections before attempting to install the eddi.
A good level of electrical competence and a reasonable understanding of domestic plumbing systems is assumed for studying this application example.
Wiring Diagram
| Key for Wiring Diagram | |
| 1 - eddi device | 2 - Mains supply (230V AC from B16 circuit breaker or 13A fused spur) |
| 3 - Hot Water cylinder | 4 - Heating element 1 (max. 3.7kW) |
| 5 - Isolator (20A double pole) | 6 - Electric radiator (150W min. 3.7kW max.) |
Functional Description
To maximise self-consumption of surplus power, an electric radiator can be heated once the hot water cylinder is up to temperature, eddi can support heating two heaters sequentially and so is perfect for this application.
Heater 1 (the immersion heater in the hot water cylinder) is heated with surplus power until the water is hot and the thermostat opens, then eddi will immediately switch over to Heater 2 to heat the radiator (6) with surplus power.
During heating of the lower priority heater (Heater 2), eddi will switch back to the higher priority heater (Heater 1) every 15 mins to check if it can store any more heat.
The heating priority can be changed in the Main Menu (Priority).

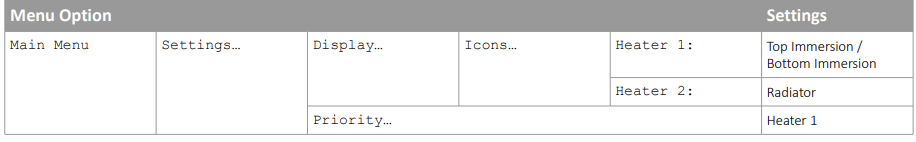

Settings Required
