Overview
Within the myenergi ecosystem, we use a range of icons to explain and inform users about the product's functions. This article aims to explain the meaning of each icon.
Local Home Display
1. | Import / Export Power | The power is either imported or exported from or to the grid (kW). The direction of the arrows indicates if the property is currently importing power (left) or exporting power (right)
The size of the arrows is proportion to the level of power. When the property is neither importing nor exporting power, the figure will be 0.0kW and there will no animated arrows. The property is then said to be ‘in balance’ |
|
2. | House Load Power | The power that the property is currently using in kW
It does not include any surplus power being sent to the heater(s) Note: This is displayed only when the Generation Sensor is installed (either connected to CT2 input or a harvi device) |
|
3. | Status Text | The current status is displayed here (see Status Screens) | |
4. | Generation Power | The power being generated at this time in kW Note: This is displayed only when the Generation Sensor is installed (either connected to CT2 input or a harvi device) |
|
5. | Lock Icon | Operation lock is active | |
6. | Date & Time | The current date and time | |
7. | Mode Icons | These icons indicate that the import limiting is active (house) or the e-Sense input is live (e) | |
8. | zappi Icon | This zappi unit. If there are wavy lines above the icon, the unit is thermally limiting (the output power will be temporarily reduced) | |
9. | Charge Mode | Shows the selected Charging Mode; FAST, ECO or ECO+ (see Charging Modes) | |
10 | Charge Delivered to EV | The accumulated charge energy that has been sent to EV in this charge session | |
11. | Current Charging Power | When the EV is charging, arrows will show here along with the charging power in kW | |
12. | The Green Level of the last charge | This is the percentage of ‘Green’ energy for the last charge session, this is shown at the end of a charge or when the EV is unplugged |
Additional Local Home Display
![]() |
House Consumption – Not Importing |
![]() |
House Consumption – Importing |
![]() |
Solar Generation Power |
![]() |
Wind Generation Power |
![]() |
Grid Power – Import / Export |
![]() |
Power Flow Direction – Small Amount |
![]() |
Power Flow Direction – Medium Amount |
![]() |
Power Flow Direction – Large Amount |
![]() |
Waiting For Surplus Power |
![]() |
DSR Mode Active |
![]() |
Charge Mode = FAST |
![]() |
Charge Mode = ECO |
![]() |
Charge Mode = ECO+ |
![]() |
zappi Device – Normal |
![]() |
zappi Device – Too Warm (output limited) |
![]() |
Import Power Limiting Active |
![]() |
Economy Tariff Electricity Available |
![]() |
Current Charging Power |
![]() |
Energy sent to EV for this charge |
![]() |
Warning – refer to text on screen |

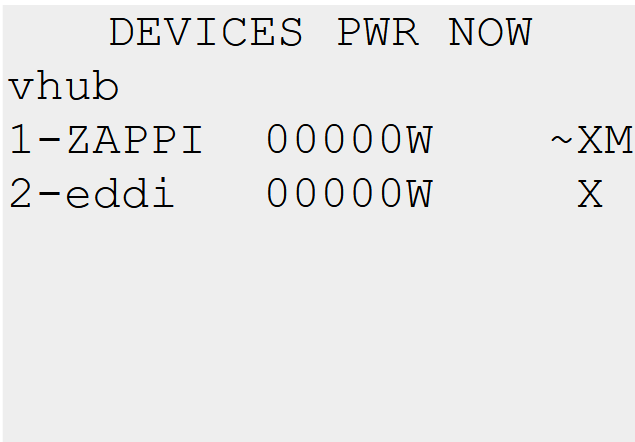

Local Linked Devices Information / CT Config Display
![]() |
Grid CT | The device has a Grid CT configured (there should be only one) |
M | Master | The device is the controlling device in the network |
![]() |
Boost | The device is currently boosting |
![]() |
Max | The device is at maximum output power |
![]() |
Min | The device is at minimum output power |
![]() |
No Load | The device is not able to use surplus power as there is no load |
![]() |
Communication Problem | There is no response from the device |
